12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi

Brand Name : SINCERE FIRST

Model Number : SF4V708BA-RP-FPC

Place of Origin : Guangdong , China

Certification : Rohs, Reach, ISO

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Chip Type : IMX708-AAJH5-C

Lens Type : 1/2.43"

Pixel Array : 4608H*2592V

Pinout : 30pin

TV Distortion : ＜-11.6%

Focusing Range : 10cm-∞

F.No : 2.2±5%

FOV(D*H*V) : D120°, H103.5°, V67.5°

Resolution : 12MP

Color Filter : Color

Contact Now

12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi

Product Description:

The camera module is powered by Sony’s 11.9MP IMX708 image sensor which can be used to capture Full HD videos and still photos, and it is compatible with Raspberry Pi.

Features:

1. Back-illuminated and stacked CMOS image sensor
2. Quad Bayer Coding(QBC) color filter arrangement
3. Phase Detection Auto Focus(PDAF)
4. High Frame Rate 60fps@Full resolution(16:9) / 60fps@1080p(QBC-HDR,16:9) / 240fps@1080p(2x2 Adjacent
Pixel Binning)
5. High signal to noise ratio(SNR)
6. Dual sensor synchronization operation
7. Built-in 2D Dynamic Defect Pixel Correction(DPC)
8. Lens Shading Correction(LSC)
9. Built-in temperature sensor

10. Output video format of RAW10,RAW8,RAW14
11. QBC Re-mosaic function
12. QBC HDR function
13. Two PLLs for independent clock generation for pixel control and data output interface
14. CSI-2 serial data output
15. MIPI D-PHY 2lane/4lane,Max.2.5Gbps/lane,D-PHY spec.ver.1.2 compliant
16. 2-wire serial communication (Supports FC"Fast mode" and "Fast-mode Plus")
8K bit of OTP ROM for users

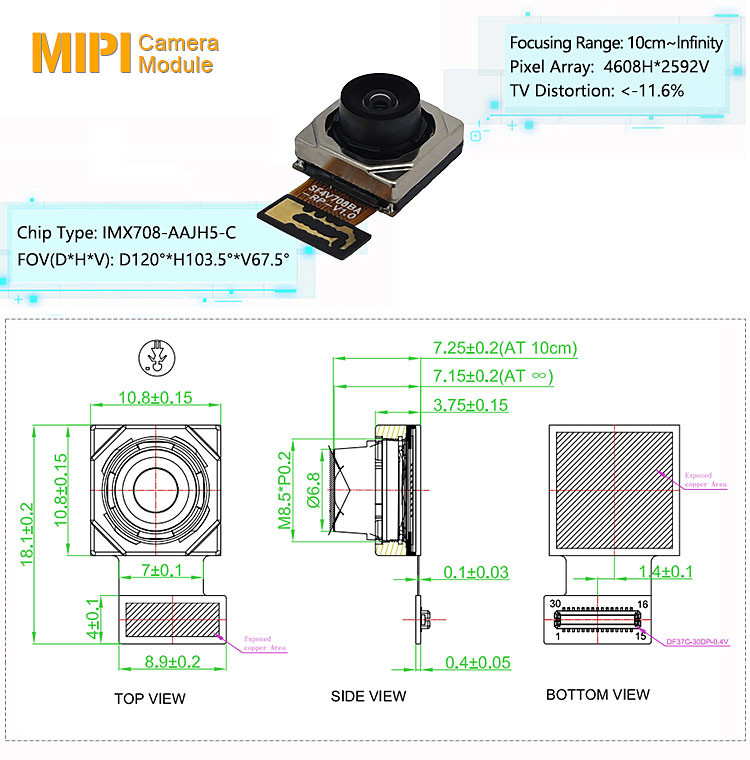

Technical Parameters:

Chip Type IMX708-AAJH5-C
Pixel Array 4608H*2592V
FOV(D*H*V) D120°, H103.5°, V67.5°
TV Distortion 24pin
F.NO ＜-11.6%
Focusing Range 10cm~Infinity
Development Platform Raspberry Pi
Certification Rohs, Reach, ISO
Interface MIPI CSI-2 Interface
Shutter Type Rolling Shutter

Applications:

Industrial Inspection

Automotive

Traffic & Security

Retail & Finance

Machine Learning
AI applications

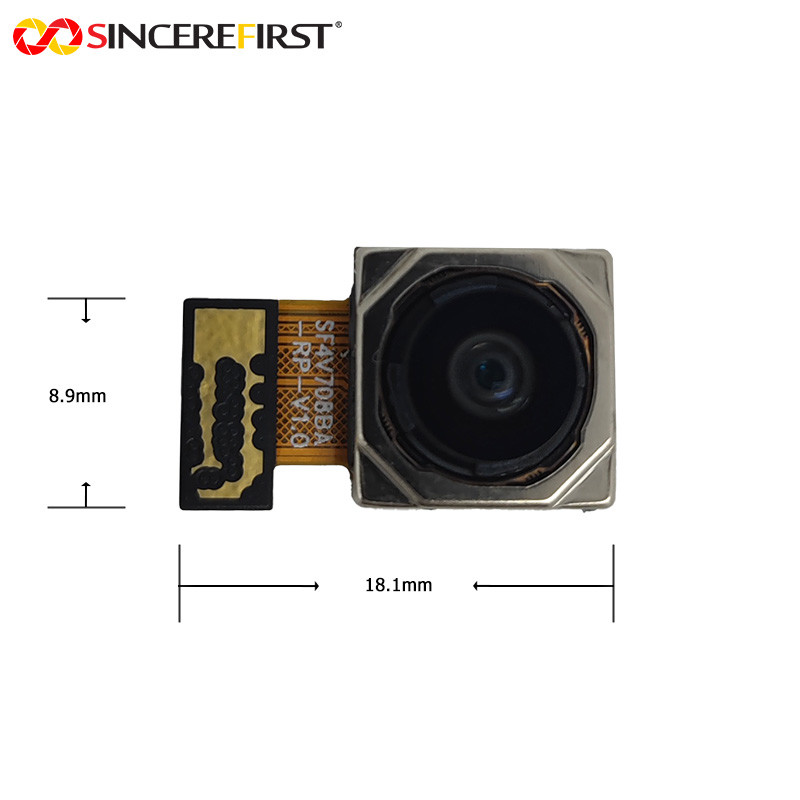

12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi

12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi12MP Sony IMX708 Wide Angle Auto Focus Camera Module For Raspberry Pi
